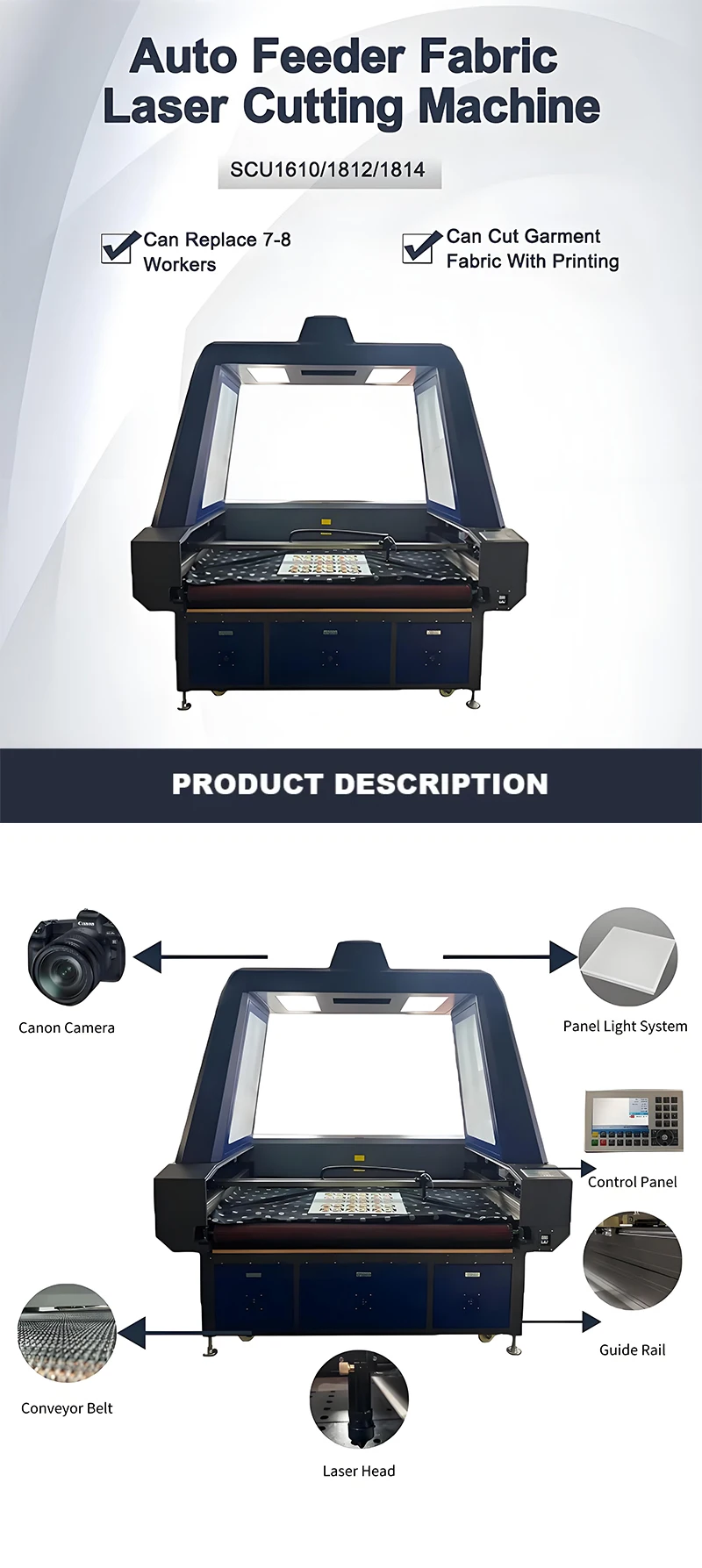

High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type

Applicable Material : Other, Acrylic, PAPER, RUBBER, leather

laser type : CO2

Brand Name : HM

Place of Origin : Hubei, China

cnc or not : Yes

condition : New

configuration : Gantry Type

control system brand : Ruida

cooling mode : Water Cooling

Cutting Speed : 500m/min

cutting thickness : 0-10 mm

Feature : Programmable

graphic format supported : AI, DXF, PLT, BMP, DXP

guiderail brand : HIWIN

Key Selling Points : Flexible Manufacturing

laser head brand : Other

mode of operation : Continuous Wave

optical lens brand : II-VI

products handled : Sheet Metal And Tube

servo motor brand : Leadshine

warranty : 1 Year

Weight : 800

Product name : C02 Laser Engraving Cutting Machine

Working area : 1600*1000mm

Power : 100-130w

Application meterial : Roll fabric, textiles, lyrca, leather, vinyl, etc

MOQ : 1

Price : $5,000-6,000

Contact Now

SPECIFICATIONS FOR SCU1610 CO2 laser fabric cutting machine
Working platform size
1600*1000 mm
Laser Power
100w/130w/150w
Controlling system
RUIDA
Software
RDCAM
Support format
PLT, BMP, DXF, DST, T100, etc
Process Material
Non-metal Materials
Max Cutting speed
500mm/s
Engraving speed
2000mm/s
Repeated accuracy
±0.2mm
Min. cutting character
3mm
Max. cutting depth
0-20mm(it's up to the material)
Cooling ways
Circulation water cooling
Working temperature
0-35°C
Working humidity
5-95%
Working Power
220V/50Hz/2.5kVA(Customize)
Accessories
Air pump
Exhausting Fan
Air Cooling
Dimension
2280*1600*1230mm
Net weight
460KGS

High-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry TypeHigh-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry TypeHigh-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry TypeHigh-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry TypeHigh-Speed 100W CCD Laser Label Cutting Machine CNC 1610 Fabric Laser Cutter for Rubber Supports AI BMP PLT Formats Gantry Type

FAQ:
Q: How to choose suitable model?
A: Please provide a photo of the product you used before or advise us your needs, we will give suggestions.
Q: What's your MOQ?
A:Normally one piece. If more, we can talk about discount. We can ship all parts you ordered together.
Q: Can I get discount?
A: The more you order, the more discount you will get.
Q: What is your terms of payment?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, balance before shipment.
Q: How long is your delivery time?
A: When the order is confirmed, 3-5 working days for the small order, 2-6 weeks for the bulk depending on the quantity and product type.
