Raytools Original XC3000S Laser Cutting Control System for Fiber Laser Cutting Machine

Name: Raytools Original XC3000S Laser Cutting Control System for Fiber Laser Cutting Machine
Brand: BCL, Raytools
Price: 800 USD

Quality Raytools Original XC3000S Laser Cutting Control System for Fiber Laser Cutting Machine for sale

spare parts type : Crystal, Control System, laser, Laser Cutting Parts

Brand Name : BCL, Raytools

Place of Origin : Hubei, China, Hubei, China

condition : New

key selling points : Easy To Operate

warranty : 2 Years, 1 Year

weight (kg) : 10, 10

Product name : Laser Cutting Control System

Application : Laser Cutting Machine

Model : XC3000S

MOQ : 1

Price : $800

Contact Now

Motion Control	Model	EtherCAT	Support standard EtherCAT; Flexible access to the system topology, support SM and DC modes
		Pulse	4-way universal axis interface, adaptable to different types of servos drive and provides high-precision position feedback, supporting CiA402
			1-way F-axis interface, dedicated to laser head focus control
	Motion control performance	Control Cycle	1ms
		Acceleration /Deceleration Type	S Type
		Look-A head motion planning; intelligent speed control
IO Function	Two sets of 24 digital inputs in total, flexible configuration of high/low side inputs
	16-way 24V general-purpose digital outputs
	4-way 16-bit high-resolution AD input, voltage range -10V~+10V
	4-way 16-bit high-resolution DA output, voltage range -10V~+10V
	4 PWM signal, supporting 24V and 5V PWM signals; 0~30kHz frequency range, and 1% accuracy
	1 laser follow-up control interface, combined with an external capacitor amplifier, realizes EtherCAT high-precision capacitor height adjustment
Working Environment	Temperature	0℃ ~+80℃
	Environmental Pressure	0.096MPa~0.106MPa
	Humidity (non-condensing)	0~70%
Power Requirements	EPC-2000	12V DC
	EDS-3000	24V DC

1.Raytools's xc3000s series is professional CNC software for industrial laser production applications; 2.Smooth operation, easy-to-use software interface, rich functional modules, independent process database, etc; 3.Compatible with various mainstream laser-cutting equipment in the industry.

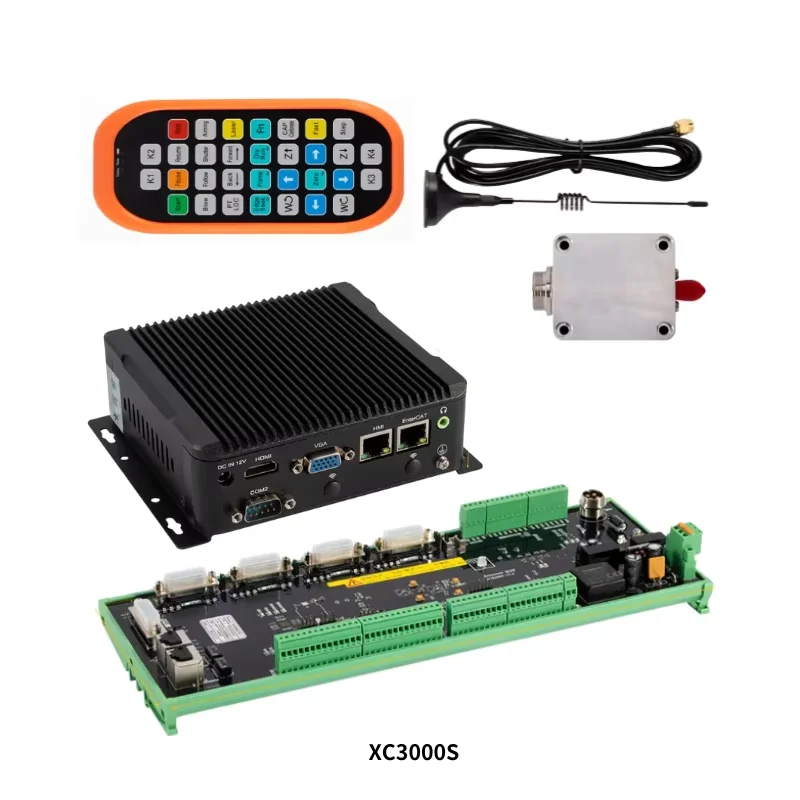

Raytools Original XC3000S Laser Cutting Control System for Fiber Laser Cutting Machine

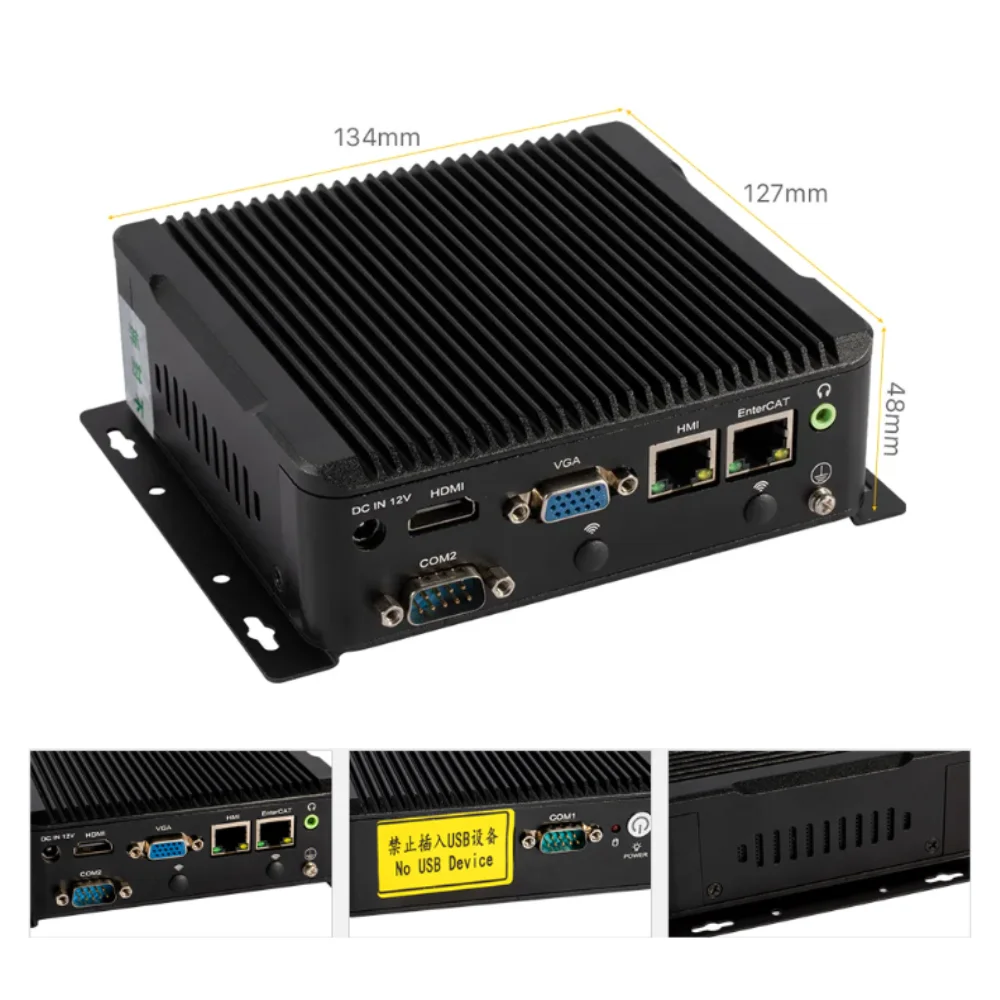

MINI Embedded Engine PC 2000

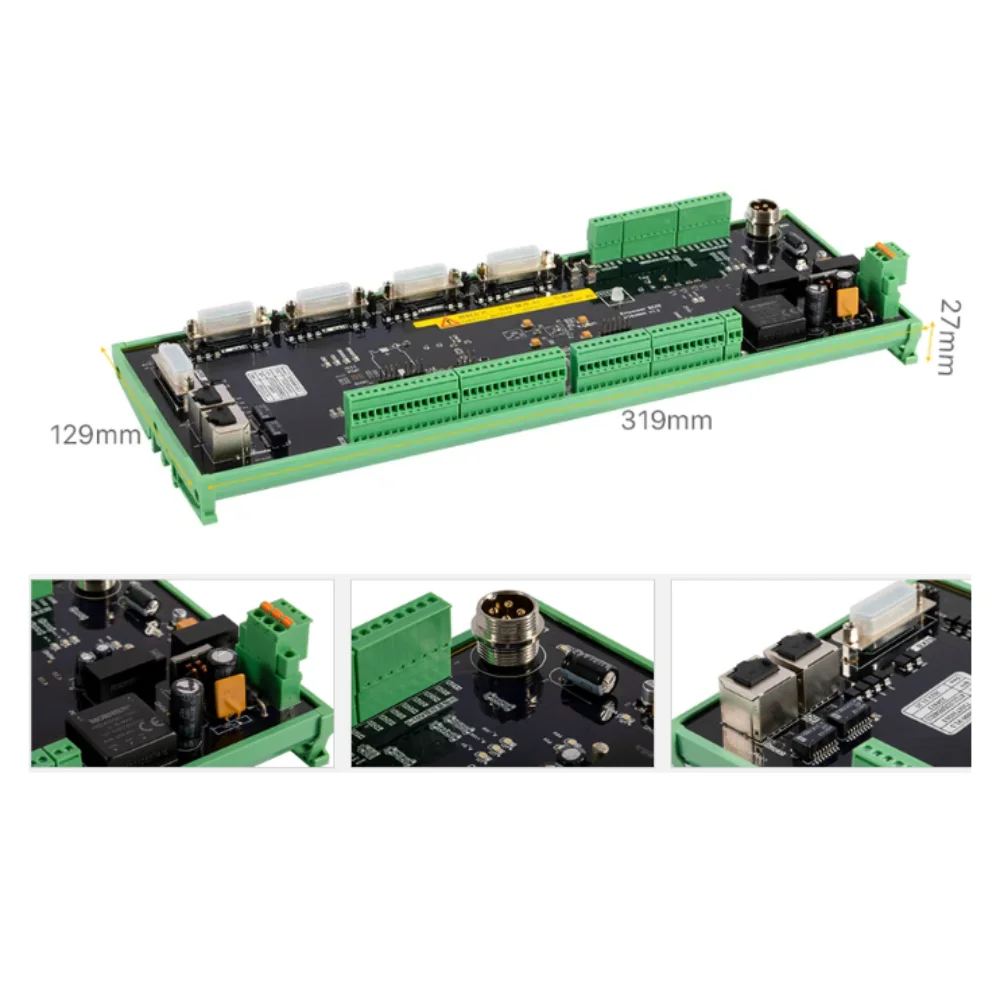

EDS3000 I/O Module

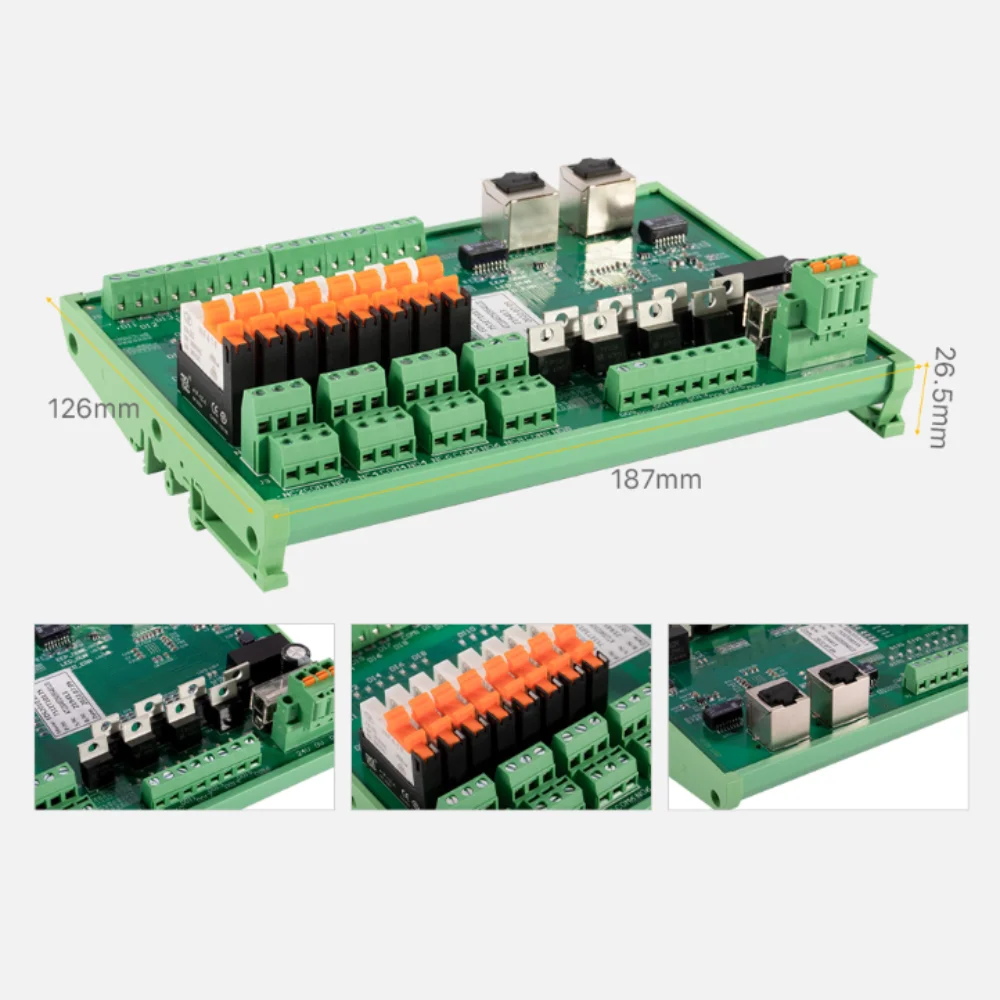

EDS2010 I/O (Optional)

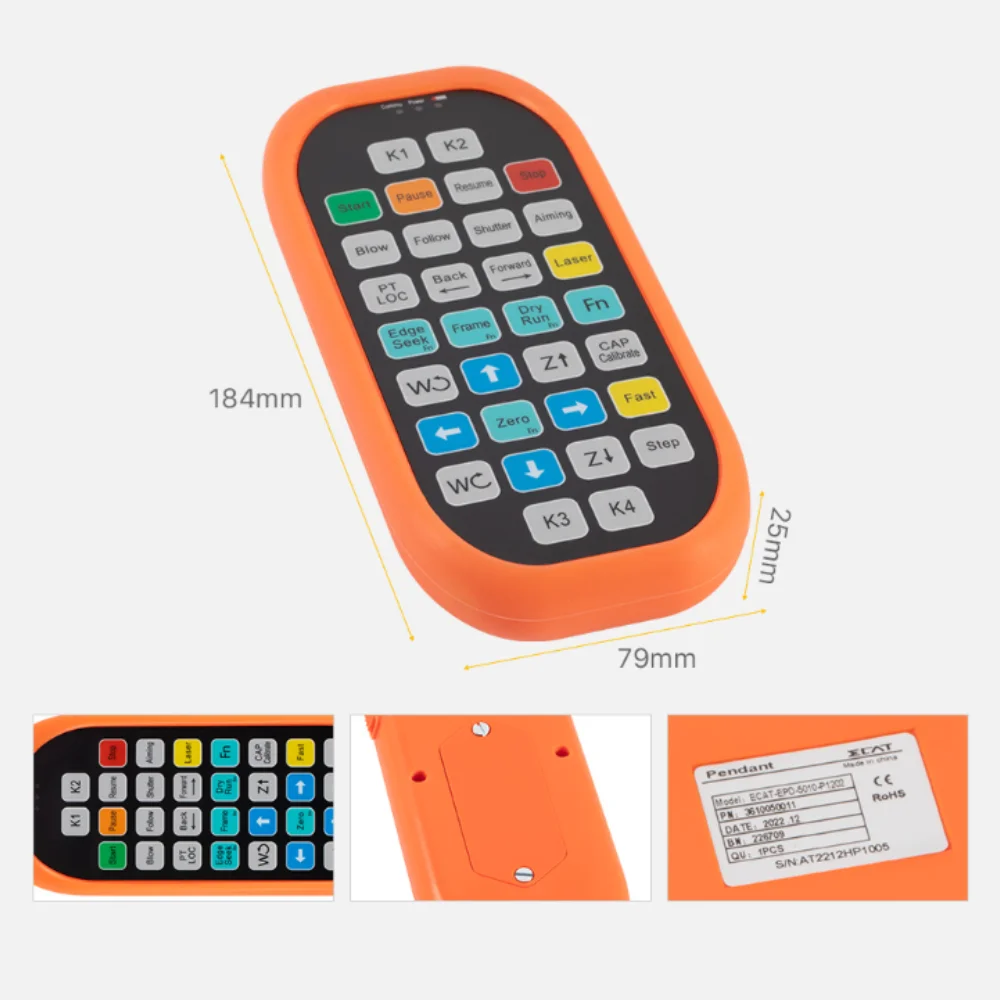

Wireless Handheld Box

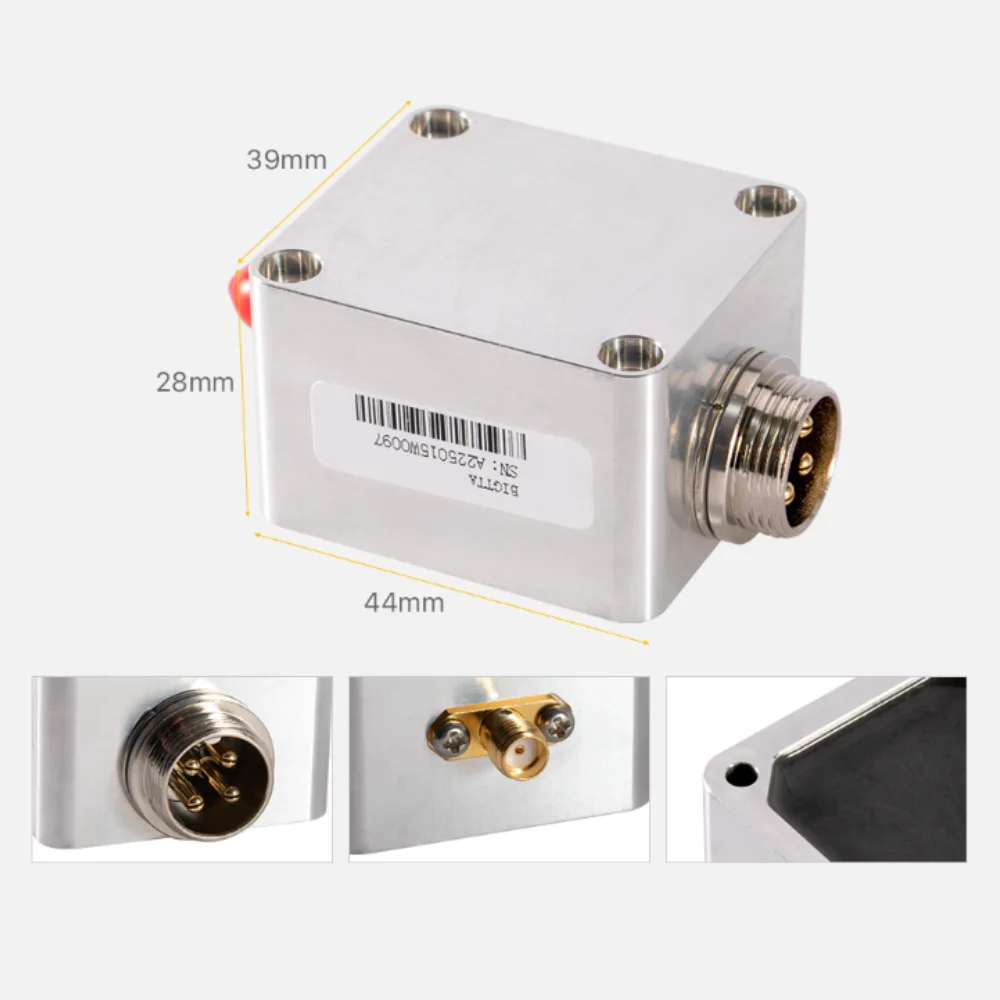

Preamplifier
