Automatic Large Size Glass Laser Cutting Machine Hiwin Picosecond Infrared for Tempered Laminated Car Mobile Glass AI BMP PLT

Applicable Material : Glass, Acrylic, Leather, MDF, Paper

laser type : Fiber Laser

Brand Name : HM

Place of Origin : Hubei, China

cnc or not : Yes

condition : New

configuration : 3-Axis

Control Software : Pratt

control system brand : Beckhoff

cooling mode : Water Cooling

Cutting Speed : 600mm/s

cutting thickness : 0.1mm~6mm

Feature : Fully-Enclosed

graphic format supported : AI, PLT, DXF, BMP, Dst

guiderail brand : HIWIN

Key Selling Points : High-Accuracy

laser head brand : Highyag

Laser Power : 1000 W

mode of operation : Continuous Wave

optical lens brand : II-VI

products handled : Glass cutting

servo motor brand : Leadshine

warranty : 2 Years

Weight : 1860

Product name : Glass Laser Cutting Machine

Focusing Lens : 50mm*50mm(optional)

Processing Area : 700mm*600mm(Optional)

Processing method : Scanning area of galvanometer

Alignment method : CCD image + target

Repeat positioning accuracy : ±3um

Overall processing accuracy : ±10um

Scanning speed : 3500mm/s(Optional)

MOQ : 1

Contact Now

Product Parameter

Laser parameters	lasers	Infrared Picosecond Laser
	Laser centre wavelength	1064nm
	Laser pulse width	≤15ps
	Average Output Power	60W
Platform System	Stage travel	Customised XY linear module, max. travel 600mmx700mm,duplexing
	Stage speed	1200mm/s
	Stage Accuracy	Positioning accuracy ±2um
Control System	Motion Control Card	Customised bus motion control card
Control System	Industrial control machine	Dual-core CPU; 8G memory; 500GB hard drive; with LCD monitor
Software System	Control Software	Dedicated glass laser cutting software
Cutting Product Characteristics	Cutting product type	Corning, Schott, Panda, filter and other glass and transparent materials
	Thickness of cut products	0.1mm~6mm
	Spacing between points	1um-10um adjustable
	Dot size	About 3um
	Cutting effect	Flat and smooth edges, the size of the edge gap of the product after cracking≤5um
	Cutting with ink	Edge with ink >60um can be cut through.
Equipment Size	Overall Dimension	L2400mmxW2100mmxH1950mm

Product Category

Model	UV Picosecond	Infrared Picosecond	Green light picosecond
Wavelength	355nm	1064nm	532nm
Laser Power	5W-60W	5W-200W	5W-90W
Focusing Spot	≤30um	≤30um	≤30um
Focusing lens	50mm*50mm(optional)
Processing Area	500mm*500mm(Optional)
Processing method	Scanning area of galvanometer
Alignment method	CCD image + target
Repeat Positioning Accuracy	±3um
Overall processing accuracy	±10um
Scanning speed	3500mm/s(optional)
Machine size	1800mm1800mm1950mm
Weight	About 2000KG
Ambient Temperature	15-35℃C
Humidity	20-80%(no condensation)

Automatic Large Size Glass Laser Cutting Machine Hiwin Picosecond Infrared for Tempered Laminated Car Mobile Glass AI BMP PLT

FAQ:

Q: How to choose suitable model?
A: Please provide a photo of the product you used before or advise us your needs, we will give suggestions.

Q: What's your MOQ?

A:Normally one piece. If more, we can talk about discount. We can ship all parts you ordered together.

Q: Can I get discount?
A: The more you order, the more discount you will get.

Q: What is your terms of payment?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, balance before shipment.

Q: How long is your delivery time?
A: When the order is confirmed, 3-5 working days for the small order, 2-6 weeks for the bulk depending on the quantity and product type.

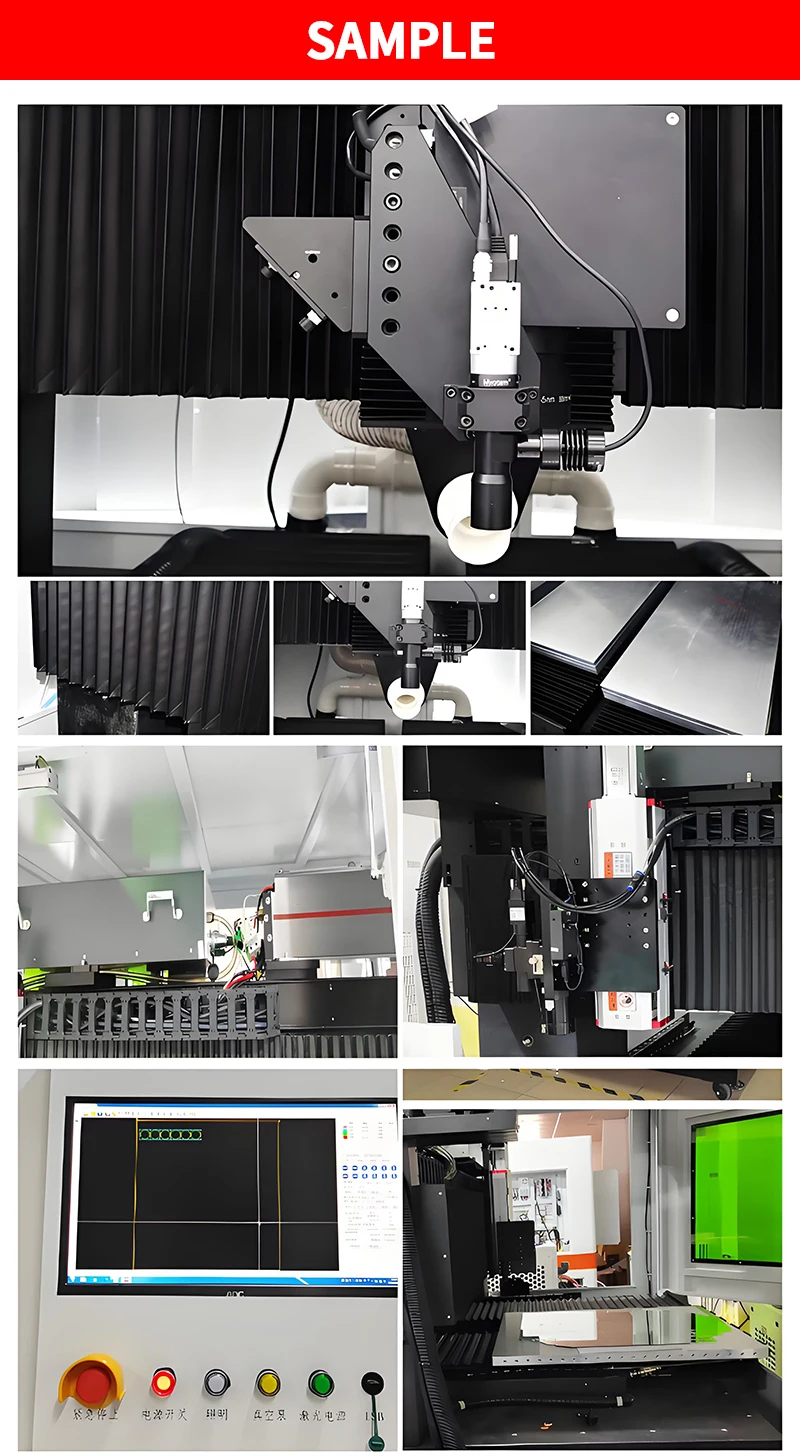

Automatic Large Size Glass Laser Cutting Machine Hiwin Picosecond Infrared for Tempered Laminated Car Mobile Glass AI BMP PLT Images
