New Condition Metal Structures Steel Beam Robot Welding Line Automatic MIG Welding Robot Workstation

machine type : Welding Manipulator

Material : Metal

max.input power : -

rated capacity : -

Type : welding, Six-axis Vertical Multi-joint

voltage : 3 phase 380v or customized

Brand Name : LS

Place of Origin : Hubei, China

condition : New

current : -

dimensions : other

rated duty cycle : 100% 24 Hours

usage : Steel Welding

warranty : 1 Year

weight (kg) : 1200

Welding Mode : MIG

Product name : Automatic Beam Welding Robot

Application : Industrial Automatic

Function : Automatic Spot Welding Machine

Welding Material : Stainless Steel Carbon Steel Metal

After Warranty Service : Online Support Video Technical Support

MOQ : 1

Contact Now

ZMD-2010A-GG-12DG
Conditions of use	0-45℃, 20-80%RH
Type	Vertical joint 6 degrees of freedom
Maximum reachable range	1598mm	Protection class	Comparable to IP65
Installation	Ground level	Positional repeatability	±0.08
Maximum load weight	6KG	Body weight	168KG
Power capacity	2KVA

Range of action	Basic Axis	J1	±170°	Maximum speed	Basic Axis	J1	259.3°/S
		J2	+64° -130°			J2	160°/S
		J3	±75°			J3	296.3°/S
	Arm Axle	J4	±150°		Arm Axle	J4	294.1°/S
		J5	+130° -105°			J5	294.1°/S
		J6	±220°			J6	426.7°/S

Model	ZMD-2010A-GG-12DG
Welding Robot	ZMD-2010A (arm span 2 meters)
Welding torch	TRM602W HD-22L anti-collision welding torch for robots
Welding power source	Megmeet Dex2500MPR robot special welding power supply
Ground rail	ZMD6100A-12 (load 1 ton, total length 12 meters)
Intelligent system	CypTronic Pro-E
Laser Vision Sensor	BCW600P
Arc welding process software package	BRW2.0V
Offline programming software	CypWeidV2.0
Power supply	AC 380V 50HZ 3 phase

FAQ:

Q: How to choose suitable model?
A: Please provide a photo of the product you used before or advise us your needs, we will give suggestions.

Q: What's your MOQ?

A:Normally one piece. If more, we can talk about discount. We can ship all parts you ordered together.

Q: Can I get discount?
A: The more you order, the more discount you will get.

Q: What is your terms of payment?
A: 100% in advance. Payment>=50000USD, 50% T/T in advance, balance before shipment.

Q: How long is your delivery time?
A: When the order is confirmed, 3-5 working days for the small order, 2-6 weeks for the bulk depending on the quantity and product type.

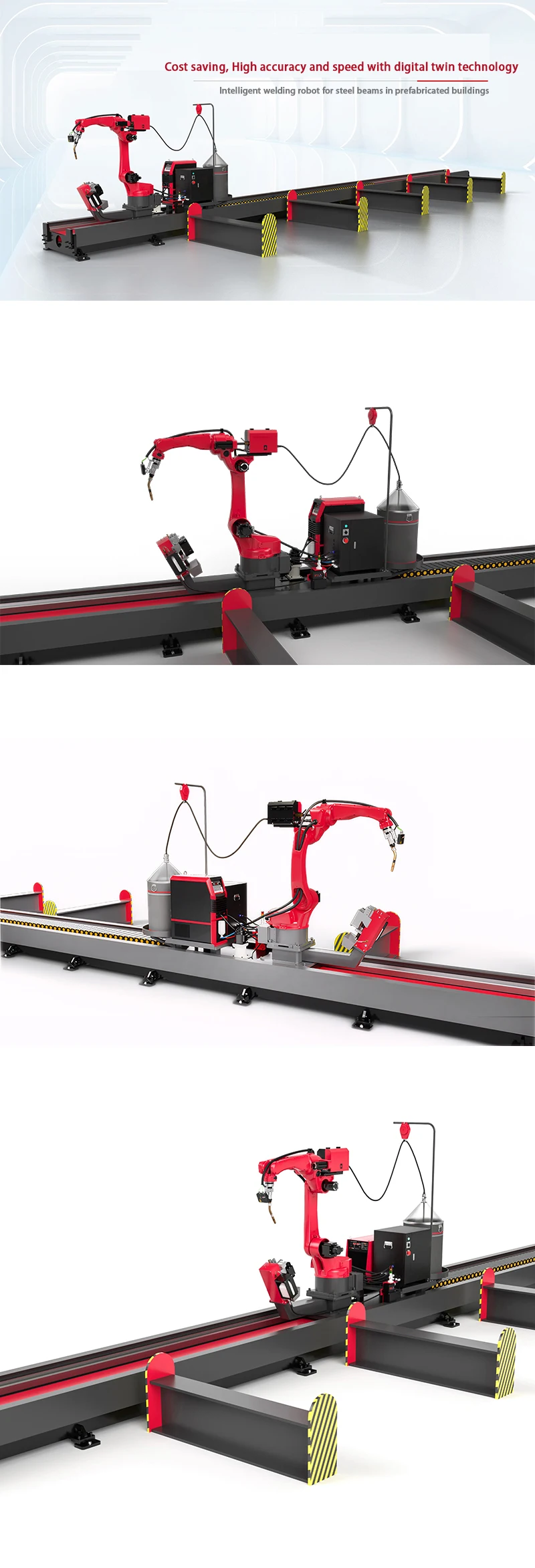

New Condition Metal Structures Steel Beam Robot Welding Line Automatic MIG Welding Robot Workstation Images
